| June
2009
New IBIS transfer unit for CP Bourg BB3002 Perfect Binder We have recently supplied

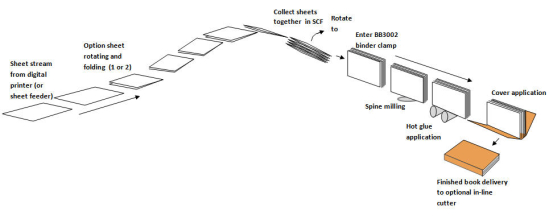

These in-line perfect binders come in two different versions: 1/ The Smart-binder PB-600C system is designed to be fed from a stream of sheets directly from the printer. Optional in-line folding can reduce the sheet format size to the required finished book size, if needed. The sheets then enter our SCF-100 (sheet collector and feeder) where they are collected on top of each other to form loose book blocks. These book blocks are then rotated to the vertical and pushed automatically into the clamp of the single-clamp CP Bourg BB3002 binder. A video of the SCF system is available on our web site at: www.ibis-bindery.com/downloads.htm click here to view.

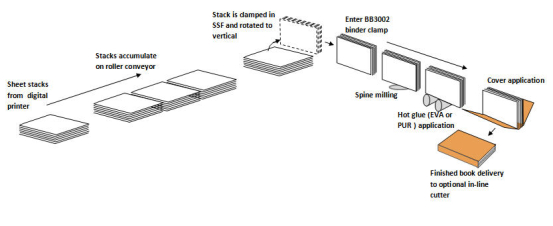

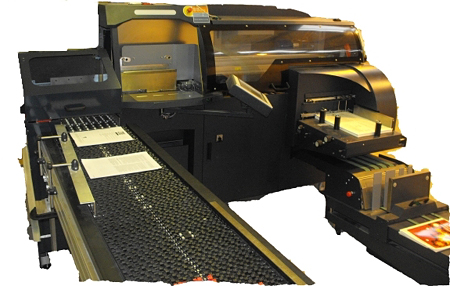

2/ The Smart-binder
PB-600S system is designed to be fed from loose Both systems use the CP Bourg BB3002 binder, which has also been an integral part of our Smart-binder SB-4 solution during the last 4 years.
Both the Smart-binder PB-600C and PB-600S systems produce high quality, perfect bound books, up to 60mm thick at speeds up to 360 books/hour in-line with a digital printer or stacker. An optional in-line book trimmer is available after binding for both systems. These new products enable us to offer either dedicated saddle-binding, dedicated perfect binding or combined saddle and perfect binding... all in-line with a digital printer, or off-line from a pile feeder. Also see our new Perfect Binding web page Don't hesitate to contact us if you'd like further information about our PB-600 perfect binding systems. John Cracknell Managing Director IBIS Bindery Systems |
|||||
|
Sales General : |
||||
| Don Piontek
|
CP Bourg Inc. Chuck Taylor |
John Cracknell tel +44 (0) 1494 561950 |
|||
our
new Smart-binder perfect binding solutions to a number
of different customers around the world, for the production of perfect
bound books in-line with digital web and cut sheet
printers.
book-
blocks (sheet piles) directly from a sheet stacker system (as part
of a digital print line). Each sheet pile is transported on an accumulator
roller conveyor and then enters our SSF (sheet set feeder).
These book blocks are then rotated to the vertical and pushed automatically
into the clamp of the single-clamp CP Bourg BB3002
binder.
