Sprint-binder Dedicated Perfect Binders

PB-600R, PB-1200R and PB-2000J

  Shortcut: 3-knife book trimmers:

The Sprint-binder PB-600R, PB-1200R and PB-2000C systems are designed to be fed from a stream of sheets directly from a digital printer.

Optional in-line folding can reduce the sheet format size to the required finished book size, if needed. The sheets then enter a stacker where they are collected on top of each other to form book blocks. These book blocks are rotated to the vertical and pushed automatically into the clamp of the single-clamp Sprint-binder PB-600, 4-clamp Sprint-binder PB-1200R or PB-2000J. Optional in-line book trimming is available after binding.

Smart-binder PB-600R
The Sprint-binder PB-600R system produces high quality books up to 60mm thick at speeds up to 600 books/hour in-line with a digital printer (click HERE to view configuration options).


The Sprint-binder PB-1200R system produces high quality books up to 60mm thick at speeds up to 1200 books/hour in-line with a high speed digital CF web printer (click HERE to view configuration options).

Smart-binder PB-2000JC
The Sprint-binder PB-2000J system produces high quality books up to 50mm thick at speeds up to 1500 books/hr in-line with a high speed digital CF web printer (click HERE to view configuration options).



Product Summary

  • High quality perfect binding
  • Fed directly from a digital printer, sheet pile feeder or roll unwinder
  • Optional in-line folding
  • Optional in-line book trimming

Product Specifications PB600R

  • Max throughput speed (books/hr): 600 books/hour
  • Max book thickness: 60 mm
  • Min book thickness: Approx 2mm
  • Max book size: 350 x 320mm
  • Min book size: 150 x 100 mm
  • Min sheet weight: 60 g/m² 16 lbs bond
  • Gluing system: EVA, hot melt or PUR
  • Specifications, all products



Product Specifications PB1200R

  • Max throughput speed: 1200 books/hour
  • Max book thickness: 60mm
  • Min book thickness: Approx 2mm
  • Max book size: 350 x 320mm
  • Min book size: 150 x 100 mm
  • Min sheet weight: 60 g/m² 16 lbs bond
  • Gluing system: EVA hot melt or PUR
  • End sheet feeder and back-lining applicator options available
  • Specifications, all products
  • Configuration options

Product Specifications PB2000JC

  • Max throughput speed: 1500 books/hour
  • Max book thickness: 50mm
  • Min book thickness: Approx 2mm
  • Max book size: 280 x 320mm
  • Min book size: 120 x 140 mm
  • Min sheet weight: 60 g/m² 16 lbs bond
  • Gluing system: EVA hot melt or PUR
  • Specifications, all products
  • Configuration options

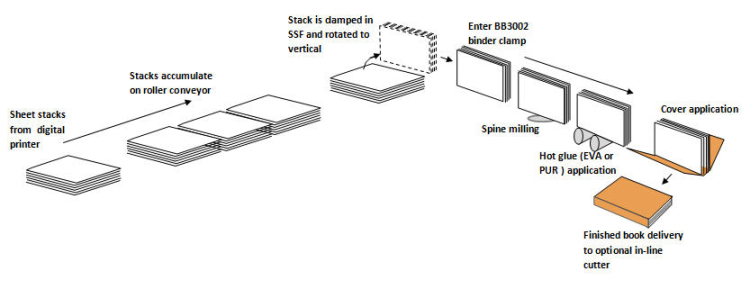

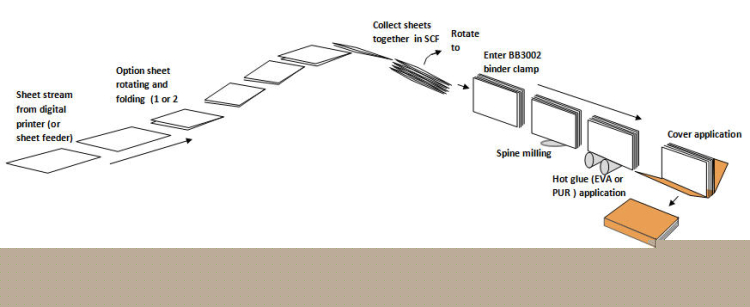

SB-600C & SB-2000JC Process Schematic

3-knife book trimmers



All model sprint binders can be supplied together with an in-line (or off-line) 3-knife book trimmer
(CMT-130 in-line, photo right).

Various models are:

CMT-130
CMT-330
TR-30
TR-30S
DT-30

Refer to IBIS for detailed specifications.



TR-30 Trimmer (photo right)



Videos

3-knife book trimmer, CMT-130, video
3-knife book trimmer, TR-30S, video
