Finish in-line, near-line or off-line?

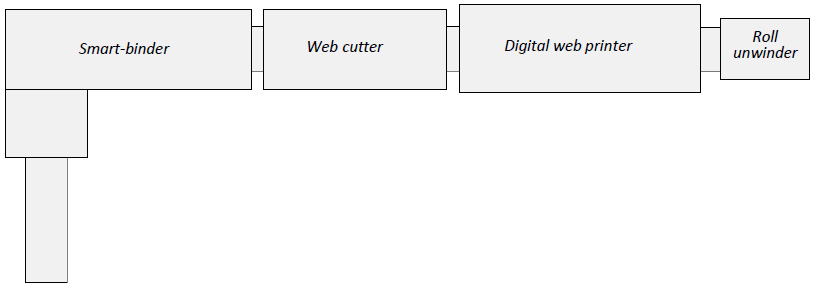

Finish in-line with a digital printer

Inline fed from a  digital printer and webcutter, floor-plan schematic
Smart-binder
Web-cutter
Digital
web-printer
Roll-unwinder

Advantages

  • Booklets are produced within seconds after printing: no delays
  • Reduced number of operators needed: no intermediate paper handling required
  • Printed sheets are immediately converted into finished booklets which increases security and reduces risk of any data breach. This is particularly important for high security printing such as examination papers
  • No additional roll re-winders or un-winders or sheet feeders are needed, so in-line is the lowest cost (hardware) solution

Disadvantages

  • Printer speed may have to be reduced when making very thin booklets (e.g: 8pp or 12pp?)
  • Finishing directly from a web does not suit production of smaller format booklets since this requires web width to be reduced or, complex additional in line folding and/or sheet rotation
  • Printer efficiency will be slightly reduced because printer must stop if the finishing system stops
  • Some printers can take a few minutes to restart after a stop which reduces the finishing system efficiency

Summary

In-line finishing is best suited to high security print applications where the booklet format size does not change and booklets must be produced immediately after printing.

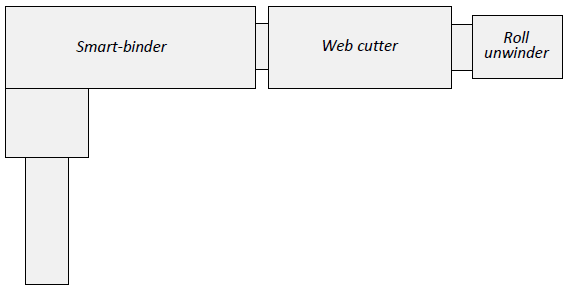

Finish near-line fed from a roll-unwinder and web-cutter

near-line with  web-cutter and roll-unwinder, floor-plan schematic
Smart-binder
Web-cutter
Roll-unwinder

Advantages

  • The printer is free to run at full speed with maximum printing efficiency when printing roll to roll
  • The roll un-winder can be set at the optimum speed to suit the finishing system
  • The system can be restarted quickly after a stop
  • The finishing system can handle the output (rolls) from multiple printers
  • Compared with off-line finishing it is easier to manually move a printer roll every few hours compared with frequently moving small piles of sheets

Disadvantages

  • It can take up to 2 hours for the printer to produce a printed roll which delays the finishing process
  • An additional roll re-winder and un-winder are needed (extra cost compared with in-line finishing)
  • Paper rolls have to be manually moved from the printer and loaded onto the finishing system roll un-winder
  • Finishing directly from a web does not suit production of smaller format booklets since this requires web width to be reduced or, complex additional in line folding and/or sheet rotation

Summary

Near-line finishing is best suited to applications requiring maximum possible system operating efficiency, and where there is not much variation in booklet format size.

Note: In-line or near-line Smart-binders may be fitted with the optional SB-097 sheet pile feeder in order to offer also the benefits of feeding off-line, when needed.

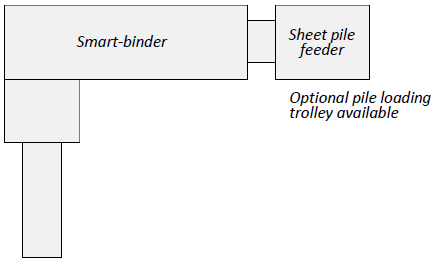

Finish off-line fed from a sheet pile feeder

near-line with  web-cutter and roll-unwinder, floor-plan schematic
Smart-binder
Sheet pile feeder
(Optional pile loading
trolley available)

Advantages

  • Sheets may be easily cut to a smaller format size to allow production of smaller format booklets. Off-line operation is therefore recommended if a large range of different booklet formats are needed
  • The printer is free to run at full speed with increased printing efficiency
  • The sheet feed rate can be varied automatically to suit the number of pages in each booklet
  • Cover matching is easier when running off-line because the codes on the sheet and the corresponding cover for each book can be checked. Also it is easier to recover after a system stop
  • The system can be restarted quickly after a stop

Disadvantages

  • The print line has to include a sheet stacker and the finishing line has to include a sheet feeder (additional cost compared with in-line finishing)
  • The Smart-binder must be stopped to reload the sheet feeder which reduces production time and required additional manual paper handling
  • The sheet feeder will occasionally mis-feed which reduces the efficiency of the finishing operation
  • The sheet feeder requires additional operator skill and training
  • The reliability of sheet feeding will be reduced if the paper is light-weight or curled or contain too much static charge

Summary

Off-line finishing is best suited to production of different format sized booklets and when booklets are personalised with matching covers.
