Common floorplan layouts

For exam paper wrapping with the Smart-binder

Including stacking, banding, wrapping and labelling

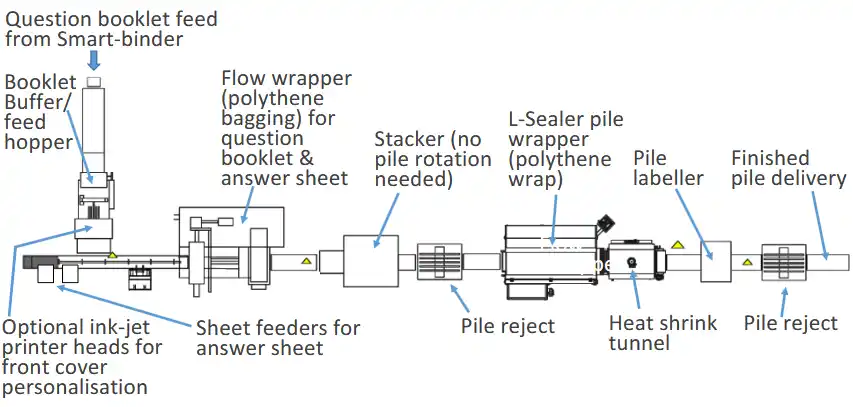

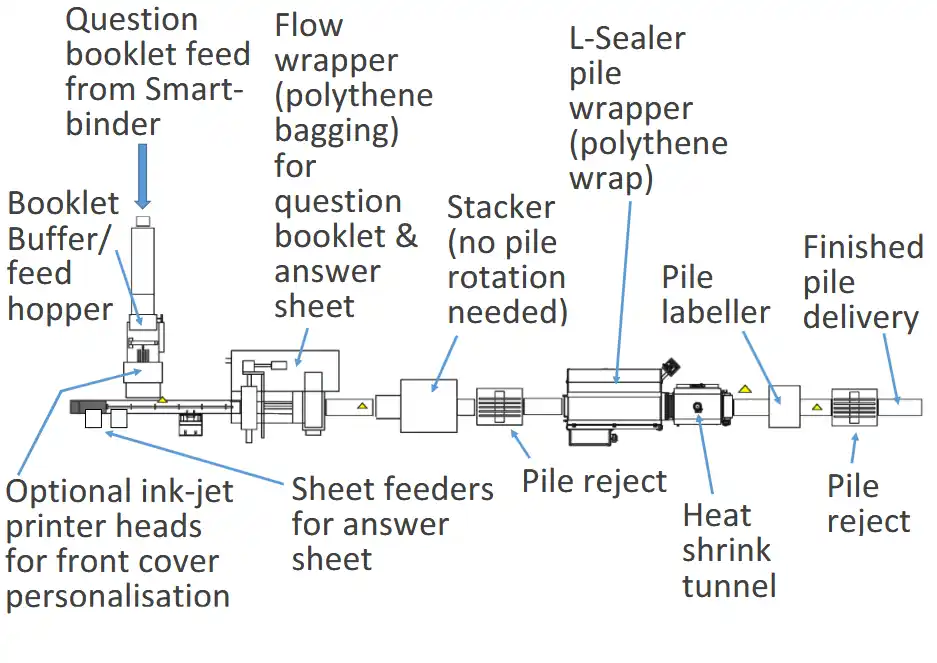

Solution A - Stacking, pile banding, pile buffering, wrapping and labelling

Solution A, stacking banding buffering, wrapping, labelling — Printed sheet input from web-cutter (+digital printer and/or roll-unwinder)

Smart-binder

Optional sheet perforator

Optional F-100 folder

Stitcher

Trimmer

Folding & scoring

Delivery conveyor

Pile IJ labeller

BSS-10 booklet stacker

Pile flow-wrapper

Pile reject module

Pile delivery conveyor

Finished wrapped piles (ready for manual boxing)

Pile reject module

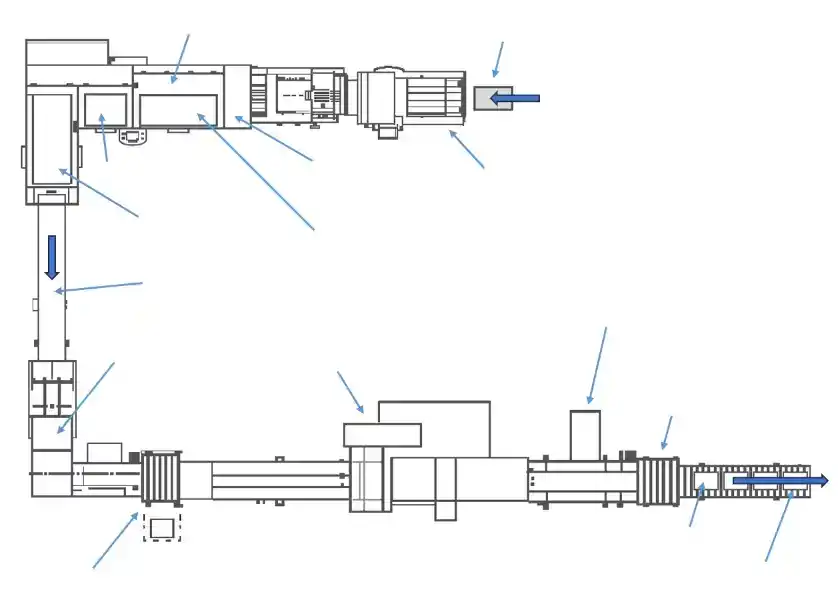

Solution A Floorplan: with dimensions Video: Solution A

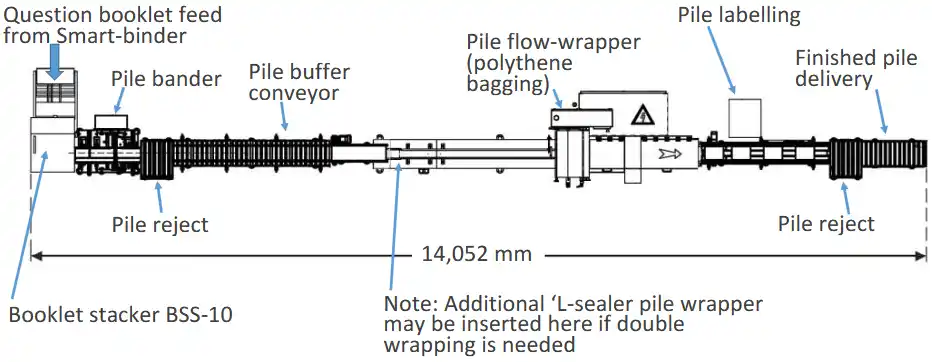

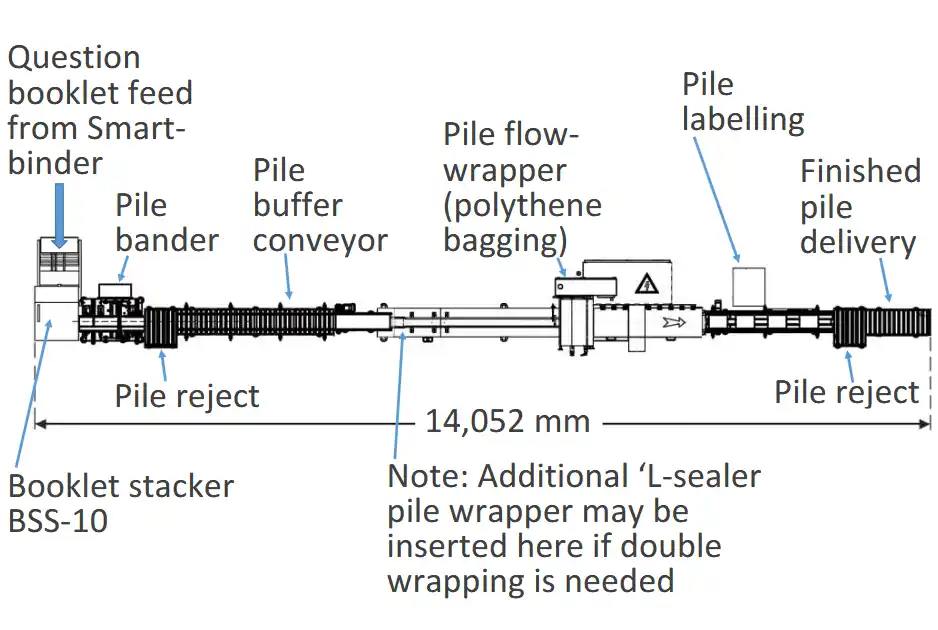

Solution B - Buffering, ink jetting, answer-sheet addition, bagging, stacking, shrink wrapping and labelling

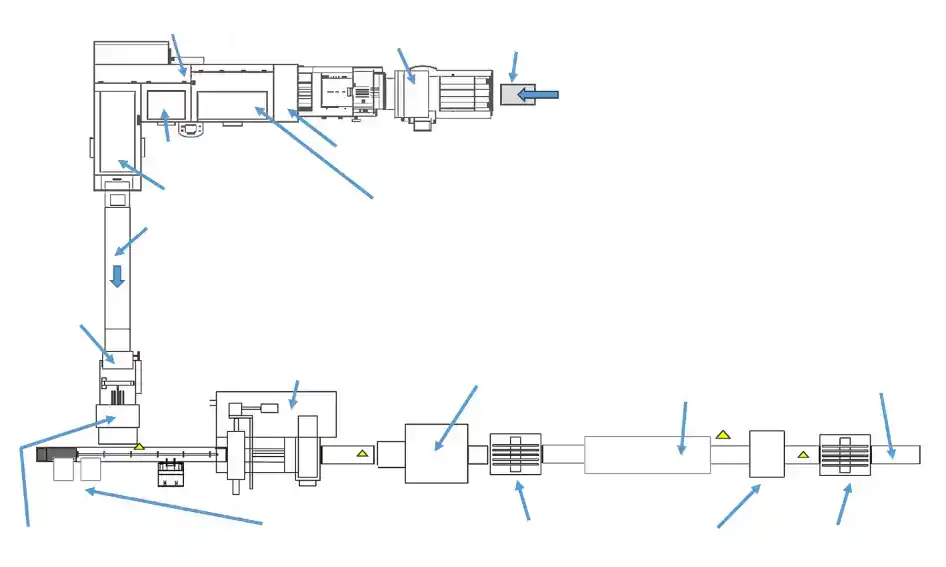

Solution B-Buffering, ink jetting, answer-sheet addition, bagging, stacking, shrink wrapping and labelling — Printed sheet input from web-cutter (+digital printer and/or roll-unwinder)

Smart-binder

Optional F-100 folder

Optional sheet perforator

Stitcher

Trimmer

Folding & scoring

Delivery conveyor

Booklet buffer/feed hopper

Flow wrapper (polythene bagging) for question booklet & answer sheet

Stacker (no pile rotation needed)

Flow wrapper or shrink-wrapper for booklet piles

Finished pile delivery

Optional ink-jet printer heads for fornt cover personalisation

Sheet feeders for answer sheet

Pile reject module

Pile labeller

Pile reject module
