Smart-binder floor plans

Shortcuts:

Smart-binder SB-2/SB-3	View
Smart-binder SB-2/SB-3 with SB-095 sheet pile feeder	View
Smart-binder SB-2/SB-3 with SB-097 sheet pile feeder	View
Smart-binder SB-2XW/SB-3XW	View
Smart-binder SB-2XW/SB-3XW with SB-097 sheet pile feeder	View
Smart-binder SB-2/SB-3 with DMP-100 Perforator	View
Smart-binder SB-2/SB-3 with DMP-100 Perforator and SB-097 sheet pile feeder	View
Smart-binder SB-2/SB-3 with CIF-102 cover feeder, 2nd CIF-101 cover feeder and SB-097 sheet pile feeder	View
Smart-binder SB-2/SB-3 with F-100 folder	View
RF-100 rotator/folder	View

Smart-binder SB-2/SB-3

PNG file    Download
WEBP file Download
DWG file   Download
DXF file     Download
All measurements in mm

Smart-binder sb-2 and SB-3 Floor Plan

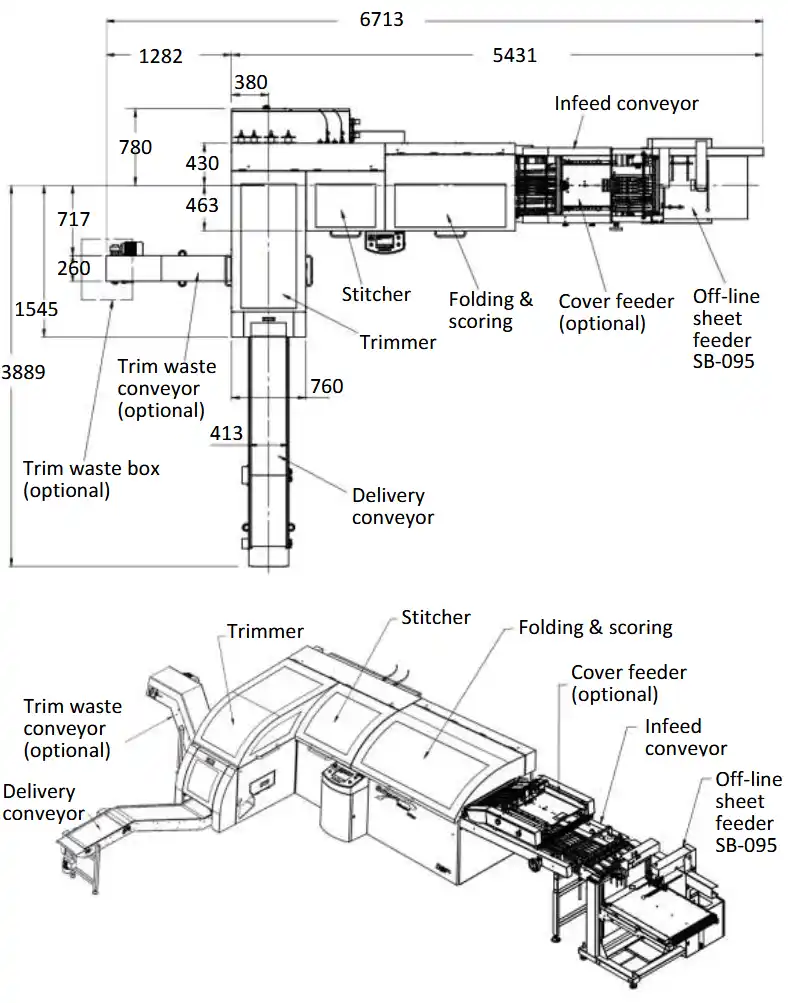

Smart-binder SB-2/SB-3 with SB-095 sheet pile feeder

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with SB-095 sheet pile feeder

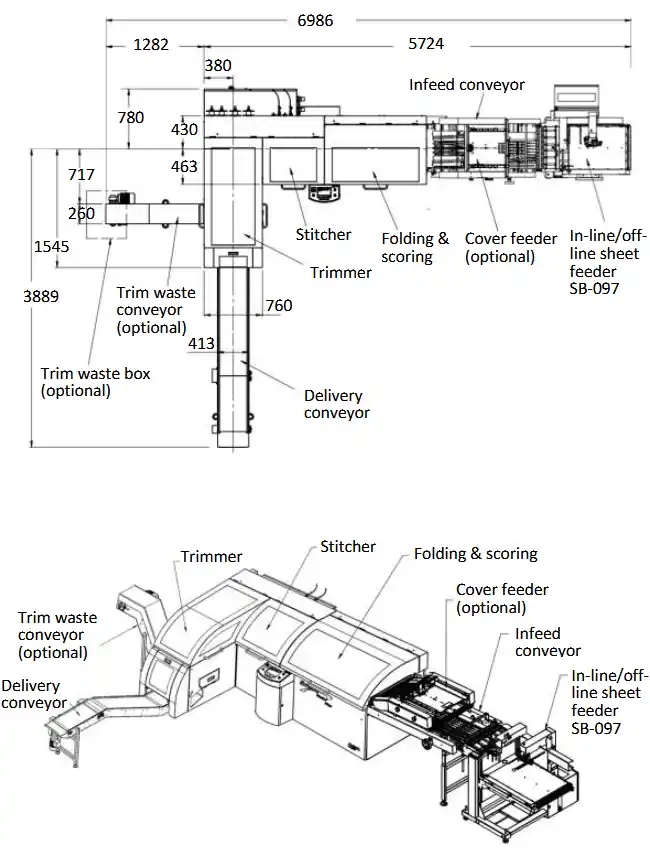

Smart-binder SB-2/SB-3 with SB-097 sheet pile feeder

Note: older version SB-097s (prior to Jan 2025) are 140mms shorter.

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with SB-097 sheet pile feeder

Smart-binder SB-2XW/SB-3XW

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder sb-2XW and SB-3XW Floor Plan

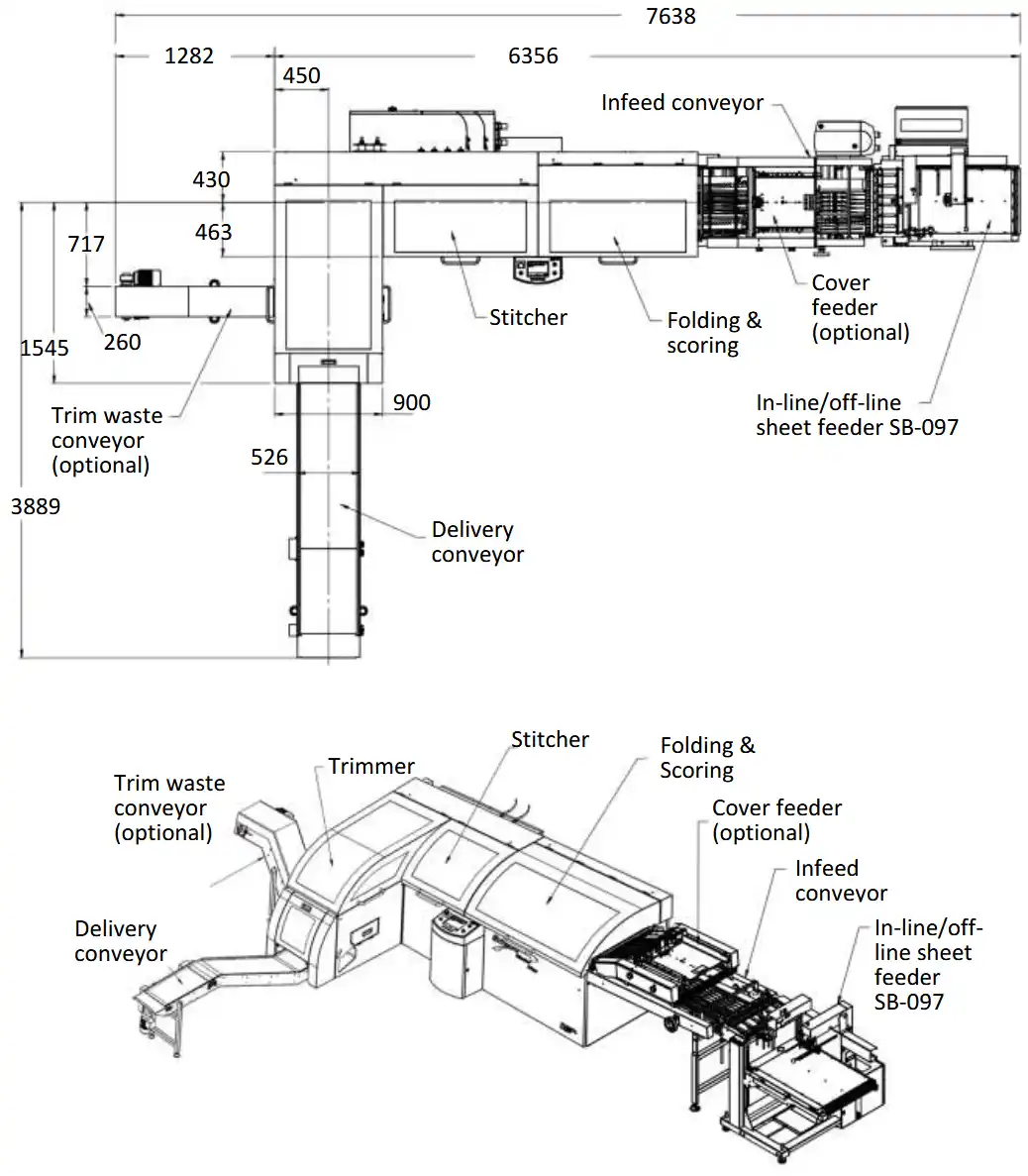

Smart-binder SB-2XW/SB-3XW with SB-097 sheet pile feeder

Note: older version SB-097s (prior to Jan 2025) are 140mms shorter.

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder sb-2XW and SB-3XW with SB-097 Floor Plan

Smart-binder SB-2/SB-3 with DMP-100 Perforator

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with DMP-100 Perforator

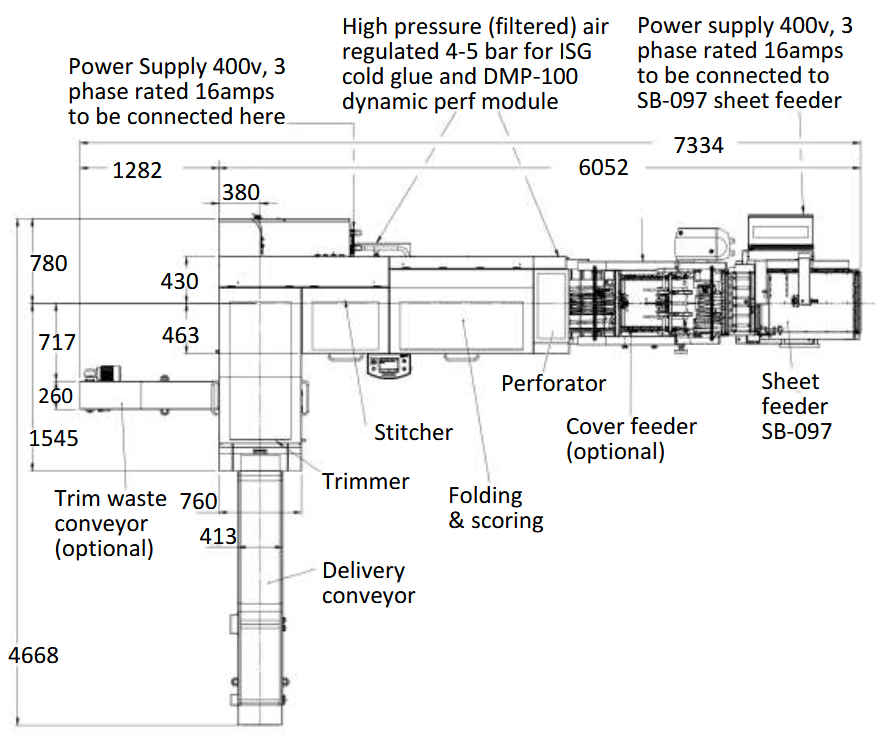

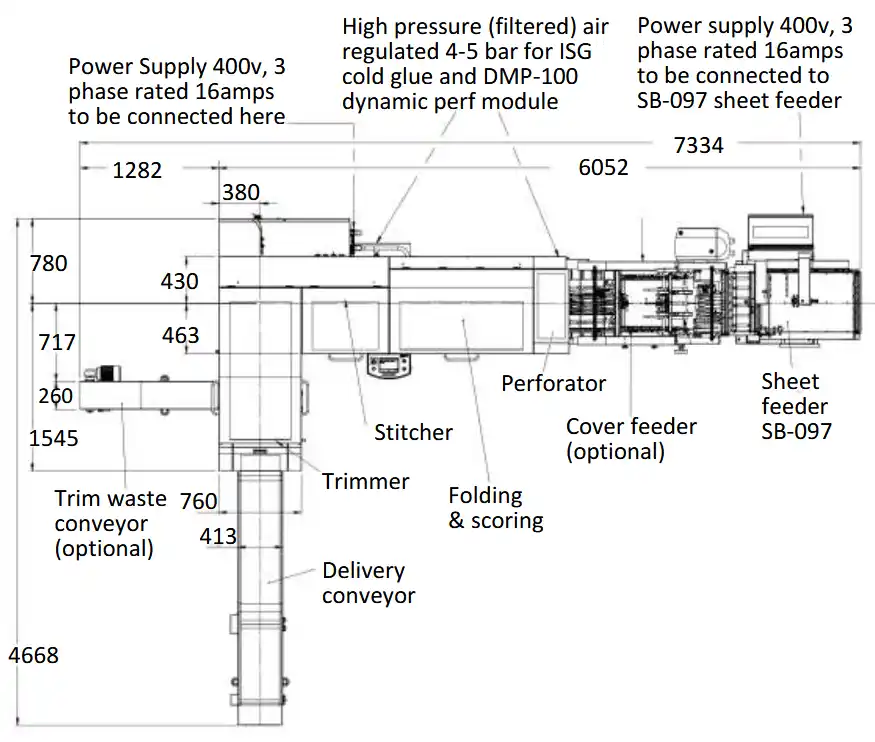

Smart-binder SB-2/SB-3 with DMP-100 Perforator and SB-097 sheet pile feeder

Note: older version SB-097s (prior to Jan 2025) are 140mms shorter.

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with DMP-100 Perforator and SB-097 sheet pile feeder

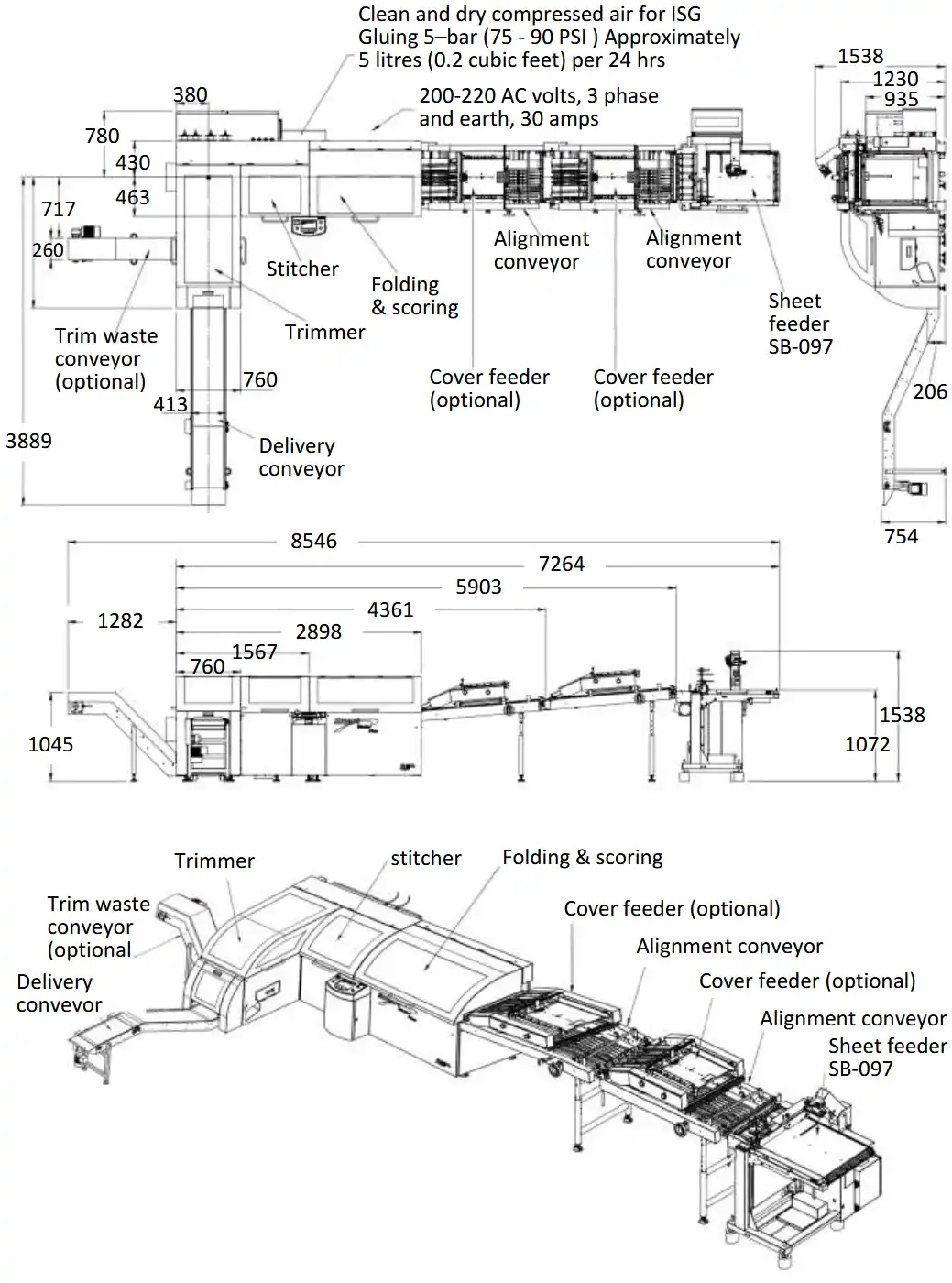

Smart-binder SB-2/SB-3 with cover feeder CIF-102, 2nd cover feeder CIF-101 and SB-097 sheet pile feeder

Note: older version SB-097s (prior to Jan 2025) are 140mms shorter.

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with cover feeder CIF-102, 2nd cover feeder CIF-101 and SB-097 sheet pile feeder

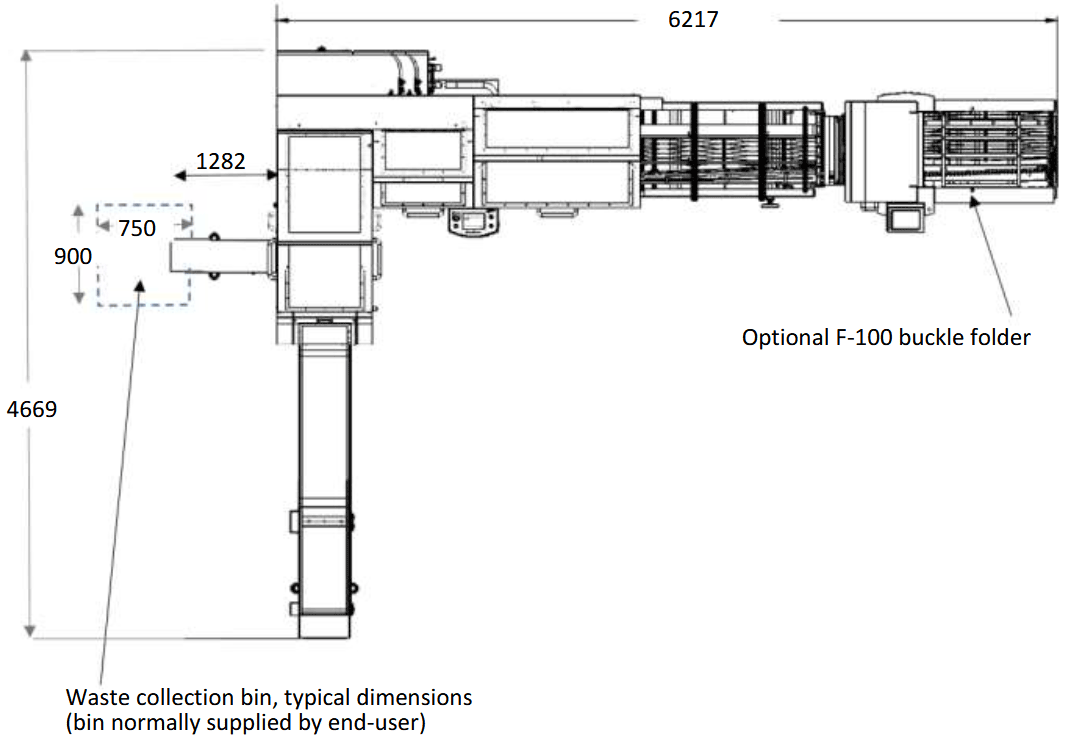

Smart-binder SB-2/SB-3 with F-100 folder

PGN file Download
WEBP file Download
All measurements in mm

Smart-binder SB-2/SB3 with F-100 folder

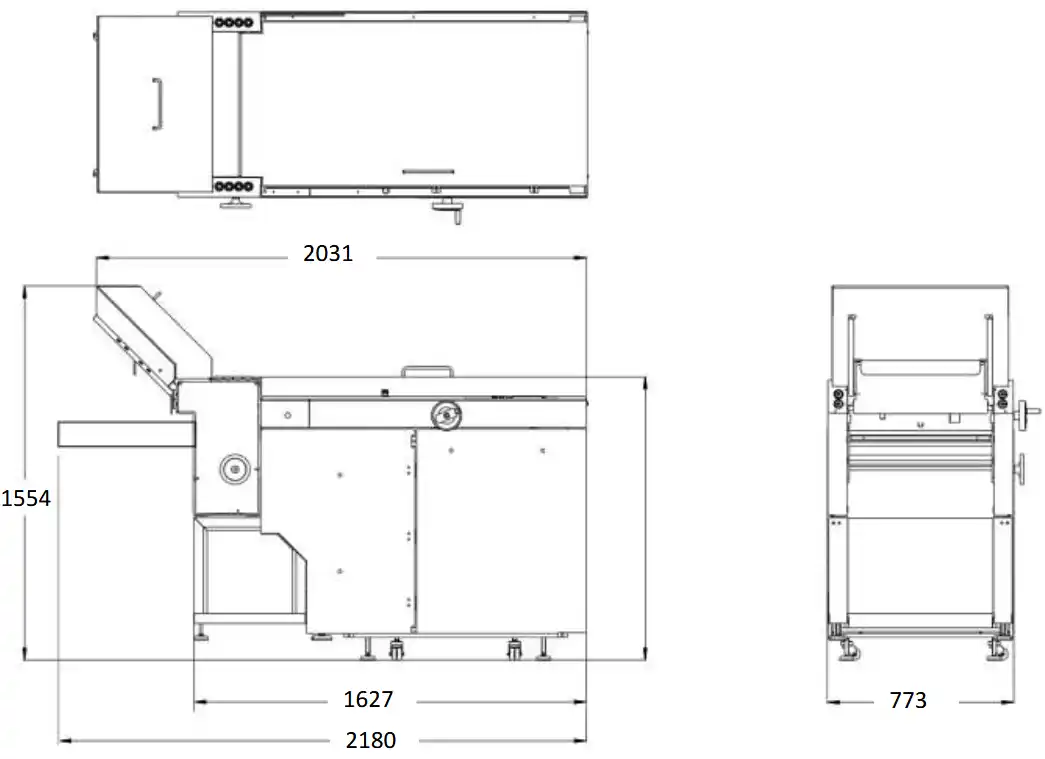

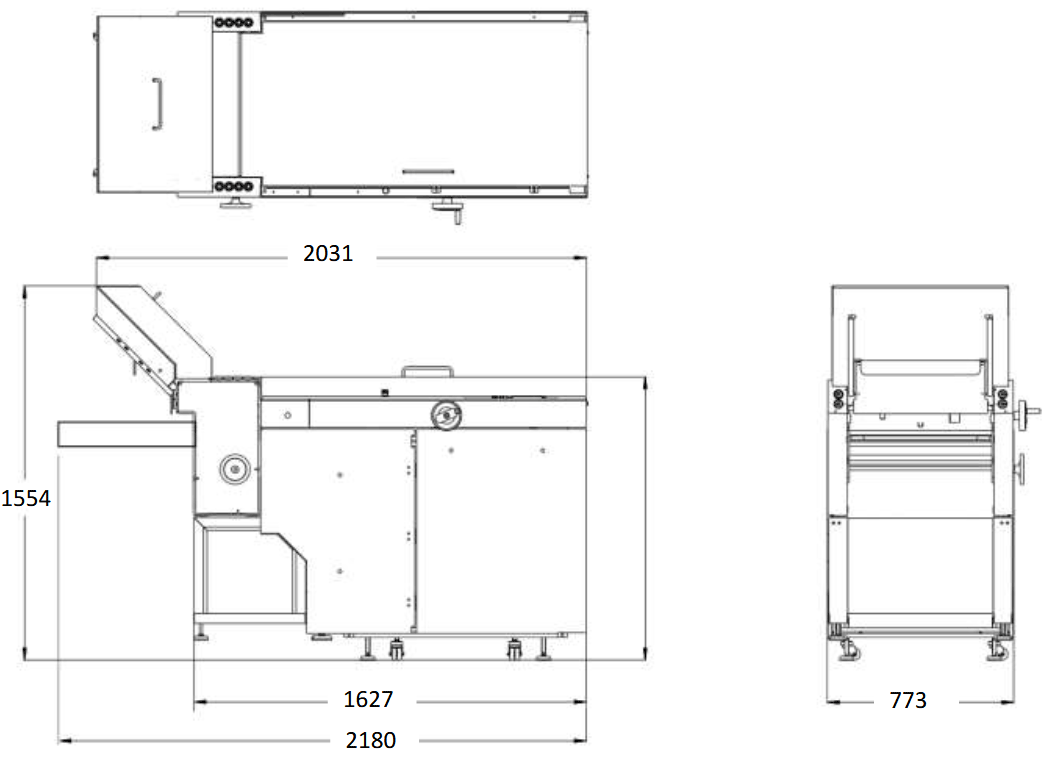

RF-100 folder/rotator

PNG file Download
WEBP file Download
All measurements in mm

RF-100 rotator/folder
