IBIS SBS-100 datasheet
Sheet buffer module
The SBS-100 buffer module may be used in between the web cutter and the Smart-binder in order to remove the ‘hard coupling’ between the printer (or roll-unwinder) and the in-line and near-line Smart-binder.

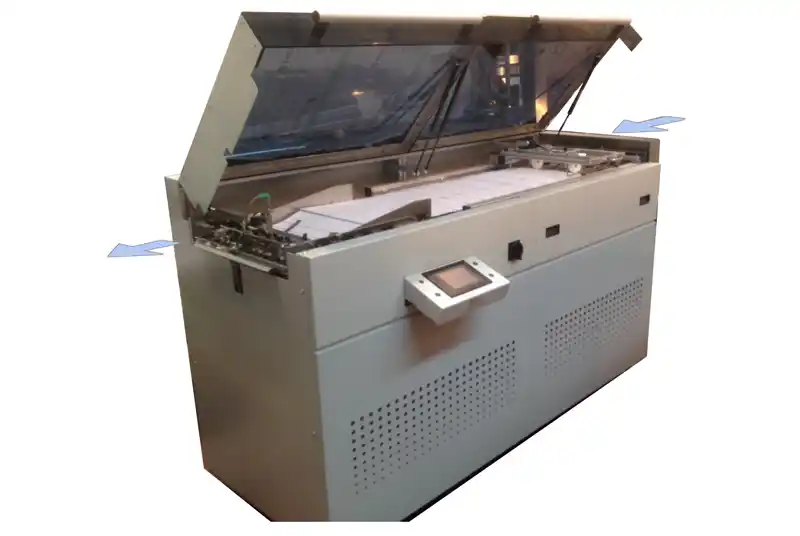

Sheet
delivery into
Smart-binder
delivery into
Smart-binder
Sheet entry
from web-cutter
from web-cutter
Note : The SBS-100 requires a power supply of 200-240V, 50/60Hz, 1P+N, 5A, and a compressed air supply of 10CFM (17m3/hr) at 90psi (6.2 bar).
Benefits of using the SBS-100:
- The SBS-100 enables a small proportion of very thin booklets (mixed with thicker booklets) to be produced at reduced Smart-binder speed, while the in-line printer (or roll-unwinder) can continue running at normal running speed without have to slow down (as it would have to without the SBS-100 buffer installed). A festoon web buffer can also perform a similar function, but the SBS-100 can store a lot more paper than a web buffer and can be controlled directly from the Smart-binder so as to feed sheets exactly at the rate determined by how many sheets are in each required booklet.
- The SBS-100 enables the Smart-binder to stop for a short time (1- 2 minutes depending on printer speed) without stopping the printer, which reduces down time and improves system operating efficiency.
- The SBS-100 may also be used to produce very thin booklets which are continually varying in number of pages, by allowing the Smart-binder to run a fixed cycling rate (continuous operating mode).
Sheet entry
to Smart-binder
infeed
to Smart-binder
infeed
Vacuum wheel
separates and
feeds bottom
sheet at
variable speed
separates and
feeds bottom
sheet at
variable speed
Photocell
monitors
pile height
monitors
pile height
TLSF-100 Servo feed hopper
feeds from bottom of pile
feeds from bottom of pile

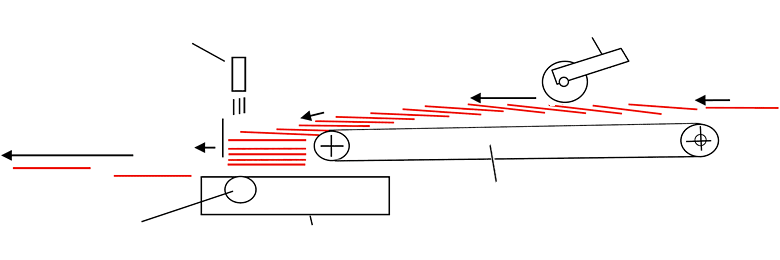

Shingle belt
High speed sheet shingling system
Sheets
arrive from
web-cutter
arrive from
web-cutter
Sheet entry
to Smart-binder
to Smart-binder
Vacuum wheel
feeds sheets at
variable speed
feeds sheets at
variable speed
Photocell
monitors
pile height
monitors
pile height
Feed hopper feeds from
bottom of pile
bottom of pile
Shingle belt
Sheet shingling system
Sheets arrive from web-cutter
The SBS-100 operates as follows:
- Sheets from the web cutter are collected in an overlapping ‘shingled stream’ on the shingle conveyor. The shingled sheets flow into the ‘top loaded’ sheet feeder TLSF-100. The TLSF-100 feeds sheets out from the bottom of the pile at a rate determined by the number of sheets in the booklet being made by the Smart-binder.
- If the bar code reader detects that some very ‘thin’ booklets (containing a small number of pages) must be produced, then the sheet rate from the TLSF-100 is automatically reduced to avoid exceeding the Smart-binder maximum output cycle rate. In this case the sheet pile height increases in the TLSF-100 feed hopper. After these ‘thin’ booklets have been produced then the sheet feed from the TLSF-100 increases and the pile height in the hopper reduces to the normal running height.
