 Spine squarer module ARSD-S-100
|
|
The ARSD-S-100 spine squarer module may be integrated into the Smart-binder
delivery in order to press the booklet spine into a square shape using
high pressure clamps.

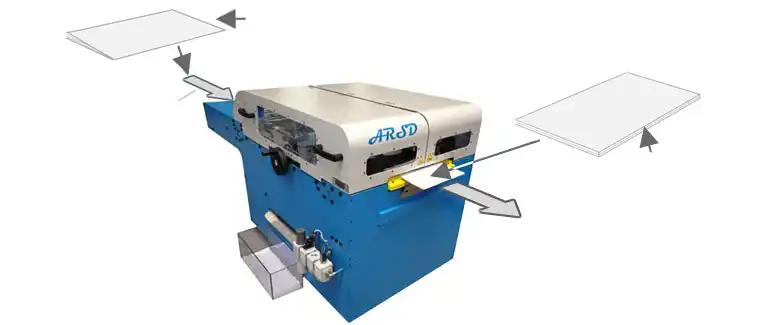

V Shape spine
Booklets enter from
IBIS Smart-binder
Square shape spine
(note: original center-fold
line remains visible)
Finished booklets are delivered
to the optional collection bin,
shingling conveyor belt MS-45 DC
or in-line stacker BSS-10
ARSD-S-100 spine squarer
View
a video of the ARSD-S-100 in operation
|
The finished 'squared' booklets are then delivered into a simple
collection bin BCB-100 or onto an optional 1.2m long horizontal
delivery conveyor MS-45 DC, or directly into the booklet stacker
BSS-10.
The ARSD-S-100 may be supplied with manual or automatic adjustment
for changes in booklet thickness.
Note: the ARSD-S-100 is twice as fast, much more robust and
can handle a booklet of double the thickness, compared with
the lower-cost spine squarer option SM-101.
|
Booklet collection bin |
Technical specification:
| Maximum speed: |
See 'Running Speeds' table below |
| Minimum booklet thickness |
3 mm |
| Maximum booklet thickness |
7 mm |
| Minimum size |
210 mm spine length - 150 mm width |
| Maximum size |
420 mm spine length - 330 mm width |
| High pressure air supply required |
7 Bar |
| Electrical Power required |
2 KW |
ARSD-S-100 running speeds
| Booklet Thickness |
Number of spine pressure cycles |
Max Speed (cycles/hr) WITHOUT automatic thickness
adjustment |
Max speed (cycles/hr) WITH automatic thickness adjustment |
| From 1 to 3 mm |
0 |
5,000 (no squaring |
5,000 (no squaring) |
| From 3 to 4 mm |
1 |
3,200 |
2,307 |
| From 5 to 7 mm |
2 |
1,978 |
1,651 |
| From 8 to 10 mm |
4 |
918 |
845 |
|
