IBIS TP-100 Trimmer datasheet

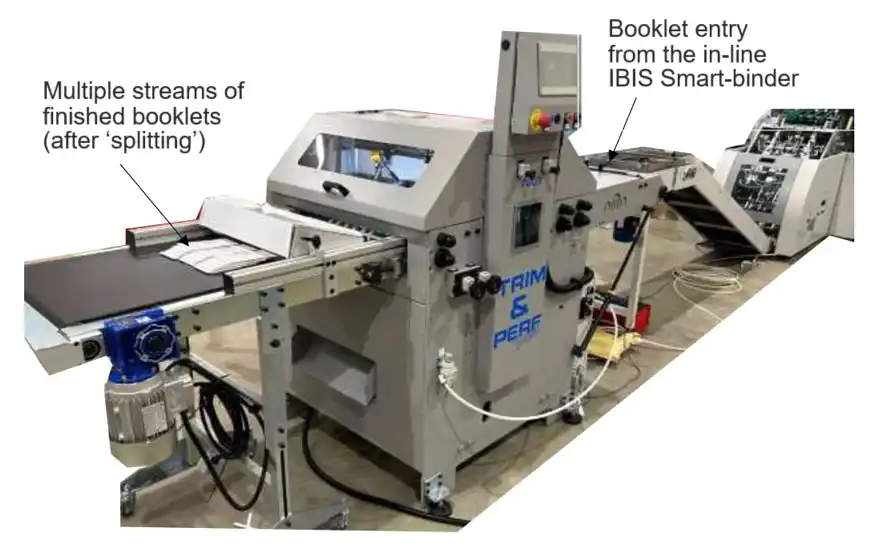

The optional additional TP-100 trimmer may be used to produce booklets which are smaller than the normal Smart-binder trimmer minimum size. In the example image below the TP-100 is used to split a long booklet (produced by the Smart-binder) into three narrow booklets.
TP-100 trimmer
Transport belts position the booklet in the cutting area inside the TP-100. Shear action knives are used to cut the booklet, either parallel to spine or perpendicular to spine. If splitting a booklet into multiple smaller booklets, then both single or double-bladed knives (gutter cut) are available.
TP-100 specifications:
| Maximum incoming booklet size (length x width) | 500 x 600 mm |
| Minimum incoming booklet size (length x width) | 50 x 50 mm |
| Maximum thickness (may be increased with special modification) | 4 mm |
| Knife Stroke | 20 mm |
| Maximum cycling speed | 9000 cycles/hour |
| Linear speed of infeed conveyor | 60 m/min |
| Machine weight | 700 kg |
| Electrical Power required | approx. 3 KW |
| Compressed air requirement (to be supplied by customer) | approx. 200 l/min at 6 bar |
| Dimensions (length x width x height) | 1670 x 1090 x 1425 mm |
View a video showing the TP‑100 in operation producing three streams of small width booklets.
