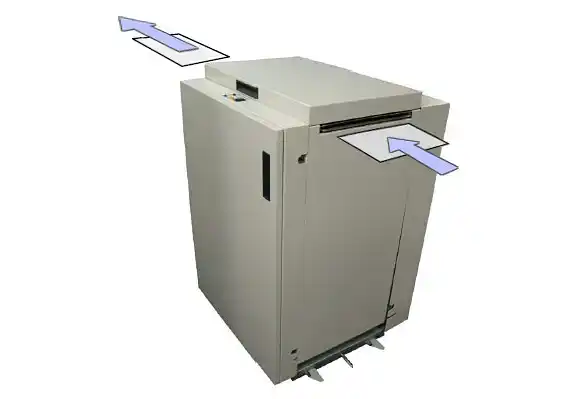

The sheet rotator module SR-50 is designed to receive sheets long-edge leading from a cut sheet printer and rotate them 90 degrees to become short edge leading.
| Modes | Rotate/Bypass |
| Max sheet size | SRA4 - in 'rotate' mode SRA3 - in 'bypass' mode |
| Paper weight | 75 - 120 g/m² (dependent on paper type and quality) |
| Electrical 50Hz |
230 V 2A |
| Electrical 60Hz |
208-240 V 1.5A |
| Electrical 60Hz |
120 V 3A(specially tailored machine) |
Note: The SR-50 should only be connected to an approved electrical system which is rated at a maximum of 16A and protected by circuit breakers
Swipe columns to left to view all the table.
| Position | In operation | On pallet | In crate |
|---|---|---|---|
| Height | 1,080mm | 1,300mm | 1,800mm |
| Width | 650mm | 1,380mm | 1,380mm |
| Depth | 650mm | 730mm | 730mm |
| Weight | 100 kg | 130 kg | 220 kg |
